Product Details:
|
Product: | Hanging Door Roller | Color: | Zinc White Or Yellow |
---|---|---|---|
Packing: | Carton Box | Sample: | Yes |
Certification: | SGS IOS BV TUV | MOQ: | 200PCS |
Type: | Door Rollers | Material: | Material |
Highlight: | 44mm heavy duty sliding door bottom rollers,heavy duty sliding door tracks and rollers,heavy duty sliding door track rollers |
Product Description:

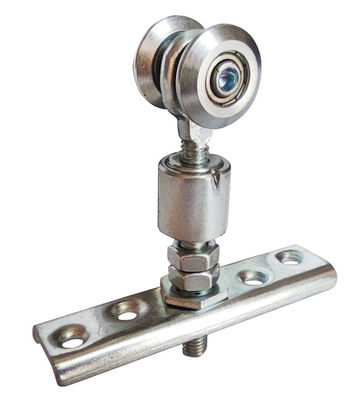

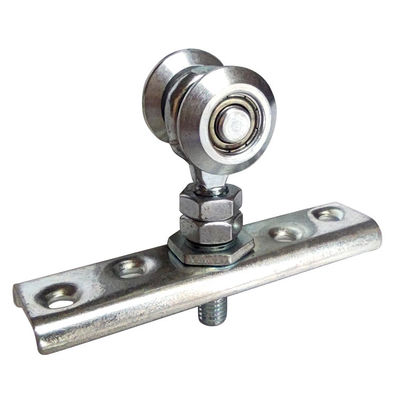

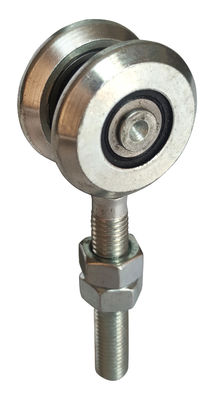

Hanging Trolley roller
used for sliding door.
We have size 25mm, 38mm, 44mm and 54mm.
We also make compatible track, bracket, stopper, etc.
Easy to install and operate, we provide a series of suspension hardware to adapt to various heavy commercial applications without disturbing the ground or sidewalks. Our heavy-duty rollers can provide a capacity of 70-460 kg per roller.
The hanging roller series are widely used in applications such as factory doors, garage doors, heavy commercial sliding doors, hanging door solutions, space dividers or large doors. Our hanging door equipment can also be used as horizontal truck door rollers. Suspended passages and rollers are installed high on the platform of the loading area of the truck, so that the loading and unloading of goods is not hindered.
Important things to consider for your hanging door/gate installation:
How long is the hanging gate, door etc. going to be?
The hanging channel is supplied in 2.9m or 5.8m lengths. Depending on your application, additional lengths will be needed. In this case, a joint support bracket would be required.
Will the channel be mounted on a wall or roof?
The channel bracket you need will vary depending on your application. For installation you will require at least 2x channel brackets per 2.9m length of gate track.
What type of rollers do you need?

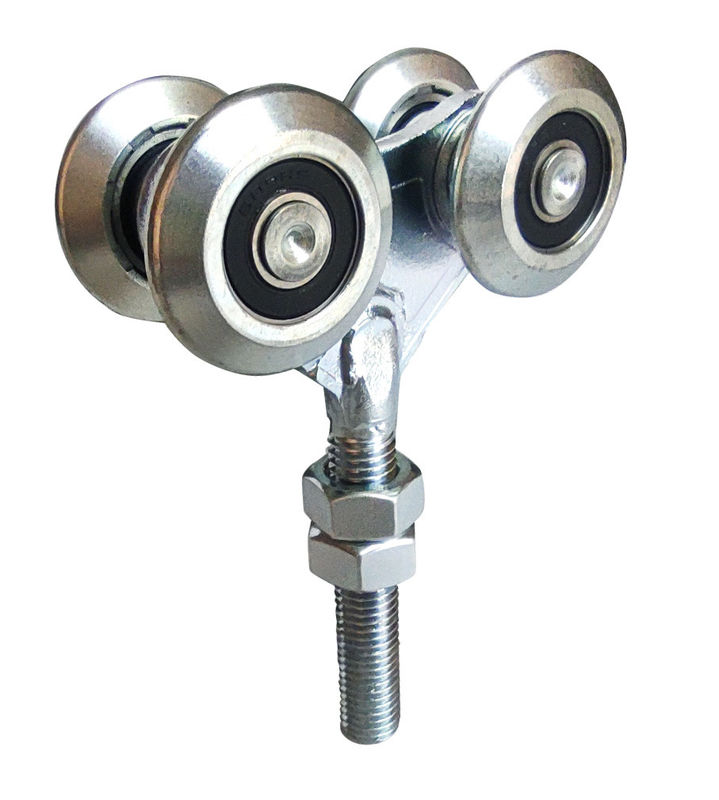

Depending on the weight of your gate the rollers you need will vary. The 2 wheel rollers are suitable for loads up to 350kg, and the 4 wheel rollers for loads up to
460kg (per roller set).
NO. | Dmm | c | c1 | H | M | A*B | WT(G) |
---|---|---|---|---|---|---|---|
GL04A | 25 | 20 | 6 | 71.5 | M8 | 94*25 | 203 |
GL03B | 38 | 29 | 9.5 | 124 | M12 | 120*31 | 544 |
GL03C | 55 | 34 | 11 | 167 | M20 | 140*45 | 1408 |
GL04B | 44 | 21 | 11 | 127 | M12 | 120*31 | 667 |
GL04C | 54 | 31 | 11 | 167 | M20 | 140*45 | 1482 |
Packing & LoadinG
Company Profile:
Jiaxing jinnaike Hardware Products Co., Ltd. is a professional manufacturer of Gates Hardware since 1995. Our products are mainly used for Sliding Gates, Swing gates, Cantilever Gates, Wooden Gates & Industrial Gates. Such as sliding gate wheels, nylon rollers, brackets, latches, guide wheels, ground tracks, hinges, door stoppers, etc. We have been working in this industry for more than 25 years. We are growing very fast based on the respect of quality standard, perfect service, fast delivery and continuous innovation. Our products have been covering over 100 countries & area , like Australia, New Zealand, Poland, Hungary, Slovakia, France, UK, Russia, USA, Argentina, India, etc. And always attain good reputation from our customers.
Chance favors only the prepared mind ! We are always ready to offer best service to every customer. We warmly welcome you to visit our company.
We specialize in manufacturing: 1. Sliding Gate Wheel, remote sliding gate wheel, Sliding Gate Track, Sliding Gate Track Catcher. 2. Cantilever Gate Wheel, Cantilever Gate Channel, Gate End Stopper, Gate Stop, Guide Roller Bracket, Gate Guide Wheel, Adjustable Bottom Plate, End Cap for the Cantilever Gate. 3. Hanger Roller, Hanger Roller Channel, Bracket for Hanging door Roller Rail 4. Nylon Roller, Steel Bracket with Nylon Roller. 5. Gate Latch; 6. Gate Hinge, Welding Gate Hinges, Hinges for Wooden Gate 7. Post Cap 8. Lock Body Case 9. Gear Rack: Nylon Gear Rack, Steel Gear Rack 10. Spring Box 11. Folding Door Accessories 12.Barn Door Accessories etc.
To pursue market opportunity actively and meet customer demands to a great extent, our company keeps improving the products with more specifications and varieties. Marketing coverage is steadily expanding.
Enjoying a good reputation from all the customers worldwide, we are a reliable partner you can trust in China.
Q&A
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, The 30 % of total amount advanced by T/T when signing this contract, balance 70 % should be remitted at sight of the copy of the Bill of Loading.
