Product Details:
|
Keywords: | Sliding Gate Roller | Usage: | Sliding Gate Accessories |
---|---|---|---|
Meterial: | Steel | Surface Finishing: | Zinc Surface-Plating |
Color: | Silver, Yellow | Payment Terms: | 30% Deposit T/T In Advance,70% T/T Balance |
Delivery Time: | Prompt | Package: | Carton Packaging |
Quick Detail:

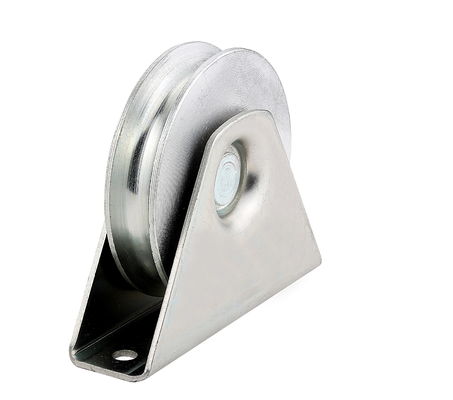

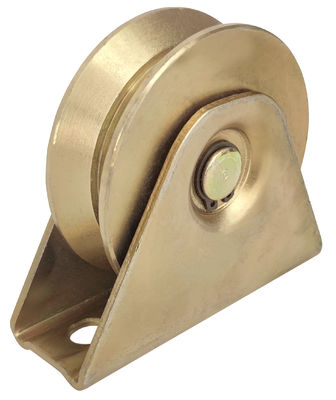

Steel Single Bearing U Groove With Support Bracket Sliding Gate Wheel used for sliding Gates. It is made of high-quality Q235 raw
materials, and the surface is galvanized/zinc plated to better prevent rust. It can be matched with U-shaped track. The common ones
are single bearing and double bearings, and be freely selected according to the weight of the door.
Size: Diameter From 50mm to120mm, Can be customized according to customer requirements.
Material: made of high quality galvanized steel.
Color: White, Yellow, Black.
Finish: Zinc Plated/Galvanized.
Groove: U Groove, Used With Round Gate Track.
Product Description:
No. | D | A | C | H | d | WT(g) |
HT1U30R3 | 30 | 10 | 16 | 35 | 10.5 | 62 |
HT1U40R5 | 38 | 12 | 20 | 44 | 10.5 | 127 |
HT1U50R6 | 50 | 15 | 25 | 57 | 12.5 | 237 |
HT1U60R8 | 58 | 17 | 28 | 64 | 16.5 | 397 |
HT1U70R8 | 68 | 20 | 35 | 80 | 16.5 | 575 |
HT1U80R8 | 78 | 20 | 35 | 85 | 16.5 | 731 |
HT1U90R8 | 88 | 20 | 36 | 100 | 16.5 | 1043 |
HT1U100R8 | 98 | 22 | 36 | 105 | 16.5 | 1337 |
HT1U80R10 | 78 | 24 | 35 | 85 | 20.5 | 776 |
HT1U90R10 | 88 | 25 | 36 | 100 | 20.5 | 1118 |
HT1U100R10 | 98 | 25 | 36 | 105 | 20.5 | 1360 |
HT1U120R10 | 118 | 25 | 37 | 127 | 20.5 | 2112 |
Applications:
Factory doors, Gate doors, Warehouse sliding doors, Entrance door
Packing & Loading:
Company Profile:
Jiaxing Jinnaike Hardware Products Co. Ltd. is a leading worldwide manufacturer in Jiaxing based since 1995, Our company is a professional
and successful manufacturer of gate hardware which are used for sliding gate, swing gate and cantilever gate. By endless hard-working and
innovation in the past years, our company has become the leading producer of this industry in China.
We are backed by powerful technology and production, 20000 M2 space plant, (high-speed) stamping machines (1pc /400T, 3pcs/80T, 7pcs/40T,
8pcs/25T, 2pcs/16T), track making machines, wire cutting machines, milling machines, tooling making team, technical team, well-trained
production staffs, aggressive management and sales team who has shown dedicated performance standards and made us experienced supplier
to the international frontiers.
To maximize market opportunity and meet the customers' demands, we continually expand the products with more specifications and varieties. So we could cooperate not only on the exiting products with customer's private labels/logos/brands, but also the specifications customer made, or even new items that can be produced by the current machine equipment or toolings.
The low-cost reliable sourcing, directly from the Chinese factory, has become an integrated part of life to beat the competition around you.
Standing by "Growths through customers’ growths", we are keeping commitments to be the most reliable partner you could trust in China.

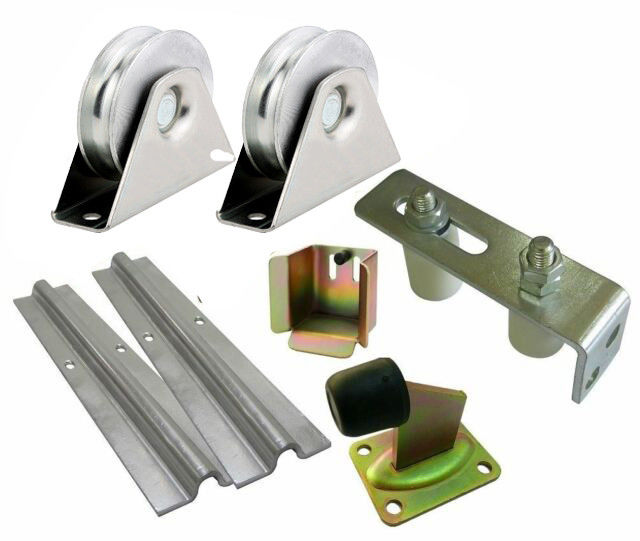

Now we have hundred kinds of products, such as sliding gate wheel, gate track, gate stopper, gate hinge, adjustable hinge, cantilever gate wheel,
