Product Details:
|
| Key Words: | Sliding Gate Wheel | Material: | Steel 235 |
|---|---|---|---|
| Surface: | Zinc Silver Or Yellow | Size: | 30mm-200mm |
| Usage: | Sliding Gate | Packing: | PVC Bags, Cartons, Pallets |
| MOQ: | 100pcs | Logo: | Sure |

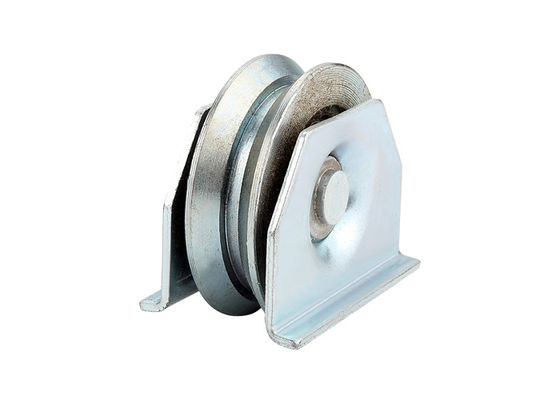

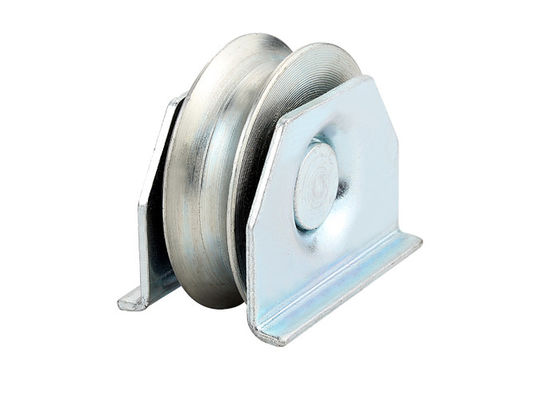

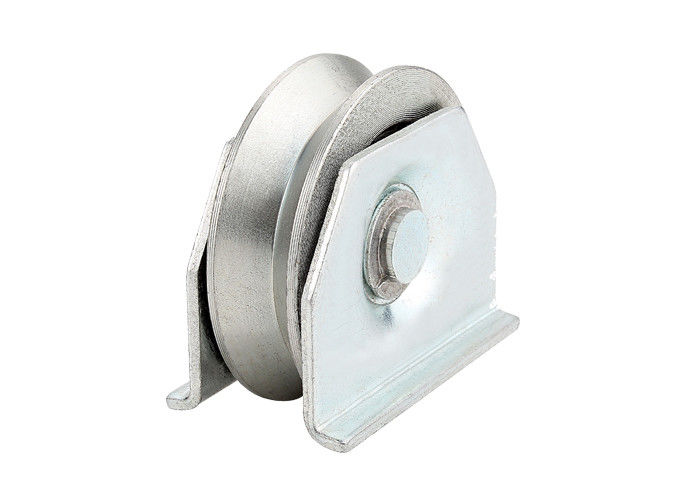

--V groove sliding gate wheel with bearings
V groove sliding gate wheel with bearings are designed to guide equipment by rolling on inverted angle iron track. Elevated track minimizes problems caused by floor debris. The relief groove at the base of the "V" equalizes the load on each face of the angle. When not operating on track, the considerable wheel tread on each side of the V-groove allows for use on smooth floors. It is important that if more than one track is used they are parallel, straight and level.
Item name: V groove sliding gate wheel with bearings
Material: steel Q235
Surface finish: zinc plated white or yellow
Size: 30mm-200mm
bearing: single bearing or double bearings for V groove sliding gate wheel with bearings
MOQ: 100pcs
Packing: PVC bags, cartons, pallets
Logo: yes, no problems
| NO. | Dmm | A | C | H | L | WT(g) |
| HS1V50 | 50 | 15 | 24 | 7 | 50 | 197 |
| HS1V60 | 58 | 17 | 28 | 7 | 59 | 327 |
| HS1V70 | 68 | 20 | 27 | 11 | 78 | 539 |
| HS1V80 | 78 | 20 | 27 | 16 | 78 | 703 |
| HS1V90 | 88 | 20 | 30 | 12 | 78 | 921 |
| HS1V100 | 98 | 22 | 30 | 17 | 98 | 1284 |
| HS1V120 | 118 | 22 | 34 | 22 | 118 | 2097 |
JINNAIKE supper V groove sliding gate wheel with double bearings

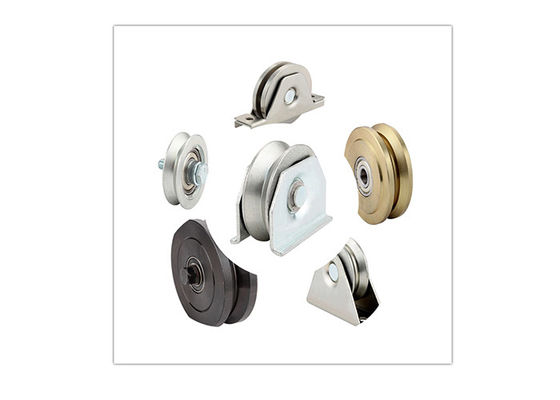

JINNAIKE other popular sliding gate wheels
--JINNAIKE other popular gate hardware
--JINNAIKE barn door hardware for you
--Our honor
--Packaging & Delivery
| Packing | All hanging are packaged by standard export package.solid and durable master carton |
| Delivery time | 5-25 day after order confirmed. |
| Payment term | T/T 30% deposit before production,TT 70% balance payment before shipment. |
| Delivery terms | FOB shanghai, CIF. |
--Our service
| Quality | ensure 100% product exported in high quality |
| Delivery | Delivery on time |
| service | Good after-sales service |
Jiaxing Jinnaike Hardware Products Co. Ltd., a leading worldwide manufacturer in China since originally1995, specializes in manufacturing hardware V groove sliding gate wheel with bearings sliding barn door accessories, gate, door, windows and fence's accessories, sliding gate pulley, hardware which is used for swing gate, sliding cantilever gate, sliding door, folding door and electric retractable door, fence, farm etc. Our company has been certified to comply with ISO9001:2008 Quality Management System, BV(Bureau Veritas) and SGS.
Hope you will be interested in our V groove sliding gate wheel with bearings, welcome to contact me, thanks!
