Product Details:
|
| Keyword: | Heavy Duty Sliding Gate; Cantilever Gate Roller; Cantilever Gate; 5 Middle Wheel | Type: | 5 Middle Wheel |
|---|---|---|---|
| Material: | Steel Q235 | MOQ: | 300 Pcs |
| Bearing: | 6201 Bearings | Loading Capacity: | 500 KGS |
| Color: | White Zinc, Yellow Zinc | Packing: | Cartons |
| Delivery Time: | 20-40 Days | Weight: | 10.7 KGS |
galvanized heavy duty sliding cantilever gate roller for cantilever gate 5 middle wheel; heavy duty gate wheel; cantilever sliding gate wheel; gate castor; cantilever gate hardware; Cantilever gate system; gate wheel; 5 wheels; sliding gate rollers; cantilever gate kit; sliding door fitting
Quick detail:

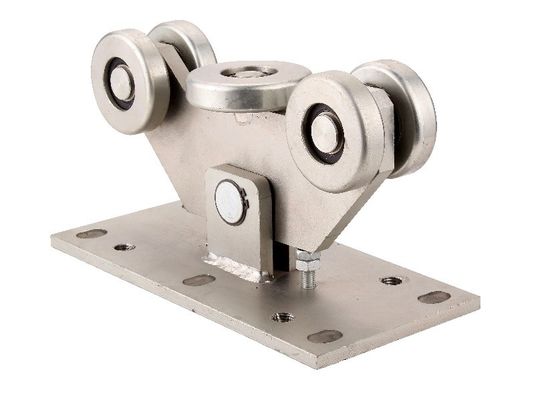

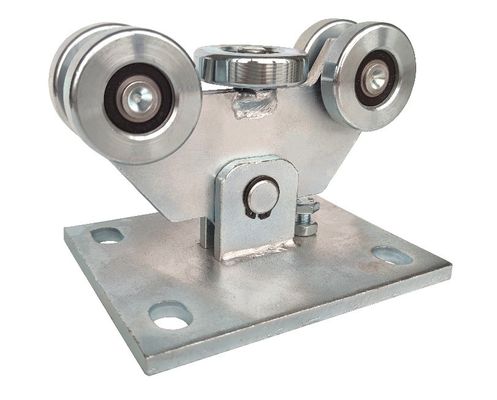

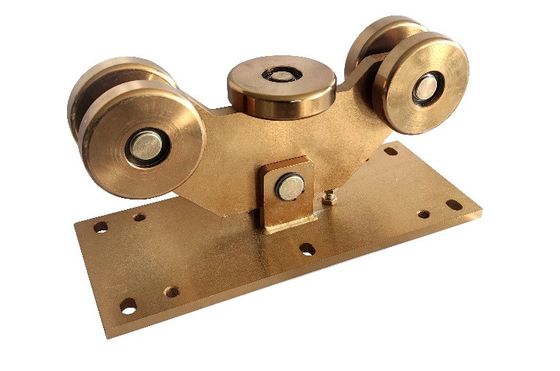

Jinnaike Hardware supply different kinds of cantilever gate wheel. It is usd for cantilever gate. This type is middle 5 wheel, it is adapt to 100x89 cantilever gate track. The diameter of the wheel is 78mm, it depends on the size of cantilever gate. We have small, middle and large size. It can add a adjust plate on the wheel, it is used to adjust the height of the cantilever gate.
Description:
| No. | Dmm | C | C1 | S | A*B | H | WT(Kg) |
| XL5S | 60 | 48 | 15 | 10 | 180*150 | 136 | 4.72 |
| XL5M | 78 | 66 | 20 | 10 | 300*150 | 173 | 10.7 |
| XL5G | 126 | 97 | 30 | 15 | 500*200 | 246 | 34 |
Application:
The sliding cantilever gate is different from traditional gate, under the force of gear rack in gear with electric motors; it can slide over the two sliding cantilever gate wheels that are fixed on the ground to realize opening the gates. Due to the two wheels hold in the track, this gate’s operation is unaffected by snow, frost on the entry. This cantilever gate wheel is very popular around the world, and easy to use by remote-control unit. especially the snowy, bad weather countries. All parts are galvanized to fight again the rust and corruption. It is easy to install and durable with minimal visible hardware that avoids many of the usual maintenance and efficiency problems due to dust and snow.

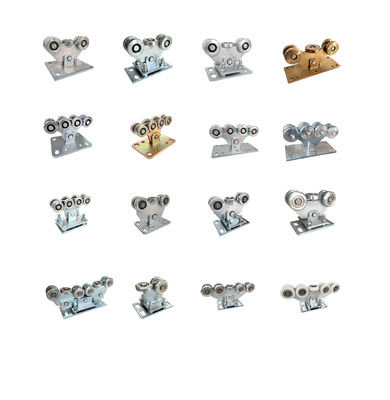

As a manufacturer, we produce all accessories this kind sliding cantilever gate. The hardware combined with a range of the high quality component, such as all size sliding cantilever gate wheel (3 wheels, 5 wheels, 8 wheels, 9 wheels, 10 wheel, 16 wheels etc.), gate stopper, guide bracket with nylon roller, end cap, adjustable fixing plate with hook bolt, guide wheel, cantilever gate track, end stop and gear rack etc.
Any interesting please contact us by email, thanks.
Company Profile
Jinnaike is a leading worldwide manufacturer in Jiaxing based since 1995, Our company is a professional and successful manufacturer of gate hardware which are used for sliding gate, swing gate and cantilever gate. By endless hard-working and innovation in the past years, our company has become the leading producer of this industry in China.
We produce a wide range of hardware products including sliding gate wheels,sliding gate tracks,cantilever gate wheels,cantilever gate tracks,guide wheels,end stops,end caps,hanging door rollers,hanging door roller rails,sliding and folding door carriages,nylon rollers,nylon rollers brackets,gate stoppers,gate hinges,gate latches,geat racks,post caps,gate handles,roller shutter door spring boxes and welded cnnection straps etc.
We have many kinds of gate hardware products. Such as cantilever gate hardware; sliding gate hardware; hanging door hardware; swing gate hardware; rolling gate hardware and gear racks.
Certificate:
We can supply full set products and accessories for gate, door, and fence, to save your money and time to search for suppliers everywhere.
We are a manufacturer which can provide professional OEM service for you, our professional and experienced R&D and production department can develop and custom produce the new products for you according to your technical drawing or samples.
We are a manufacturer which has our own factories, this makes sure our offer is always very competitive and reasonable.
Our company and the quality of our products are controlled by ISO9001:2008 quality management system, and we had also got through the SGS and BV certification. Our company is aimed at the high-end market of all over the world, our products can meet the international standard, they are quality, very durable and reliable, and are mainly exported to the European & American market.
our company offers a full range of experienced and good service for production, quality checking, packaging, logistics,custom declaration, international transportation, to reduce your troubles on the products and import operations. On the other hand, our company is very close to Shanghai and Ningbo port, it’s very convenient.
Contact Person: Davis Dong
