Product Details:
|
Keyword: | Heavy Duty 10 Wheels; Cantilever Gate Carriage; With Adjustable Plate; Cantilever Gate Systems | Material: | Steel Q235 |
---|---|---|---|
Type: | 10 Wheels With Adjustable Plate | Bearing: | 6204 Bearings |
MOQ: | 100 Pcs | Color: | White Zinc, Yellow Zinc |
Loading Capacity: | 800 KGS | Packing: | Carton In Pallet |
Delivery Time: | 20-40 Days | Track: | 80x80 |
High Light: | 800KGS Heavy Duty Cantilever Gate Wheel,Cantilever Gate Wheel 10 Carriage,cantilever gate parts |

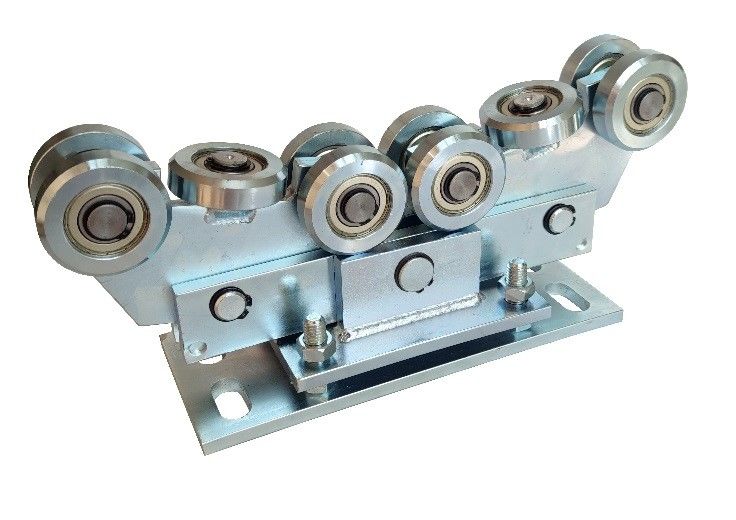

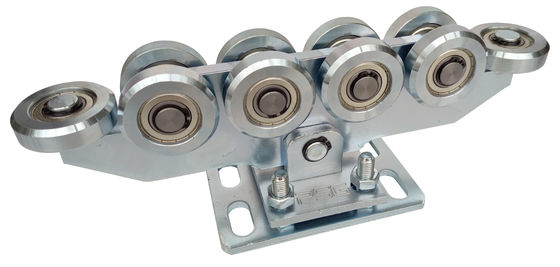

Heavy duty 10 wheels cantilever gate carriage with adjustable plate for cantilever gate systems; heavy duty gate wheel; cantilever gate hardware; Cantilever gate system; gate wheel; 10 wheels; sliding gate rollers; cantilever gate kit; sliding door fitting; cantilever sliding gate wheel; gate castor
Quick detail:
Jinnaike Hardware supply different kinds of cantilever gate wheel. It is usd for cantilever gate. This type is middle 9 wheel, it is adapt to 80x80 cantilever gate track. The diameter of the wheel is 68mm, it depends on the size of cantilever gate. It can add a adjust plate on the wheel, it is used to adjust the height of the cantilever gate.
Description:
No. | Dmm | C | C1 | S | A*B | H | WT(g) |
XL10SJ | 68 | 61 | 17 | 10 | 300*120 | 170-185 | 15.5 |
Application:
The sliding cantilever gate is different from traditional gate, under the force of gear rack in gear with electric motors; it can slide over the two sliding cantilever gate wheels that are fixed on the ground to realize opening the gates. Due to the two wheels hold in the track, this gate’s operation is unaffected by snow, frost on the entry. This cantilever gate wheel is very popular around the world, and easy to use by remote-control unit. especially the snowy, bad weather countries. All parts are galvanized to fight again the rust and corruption. It is easy to install and durable with minimal visible hardware that avoids many of the usual maintenance and efficiency problems due to dust and snow.

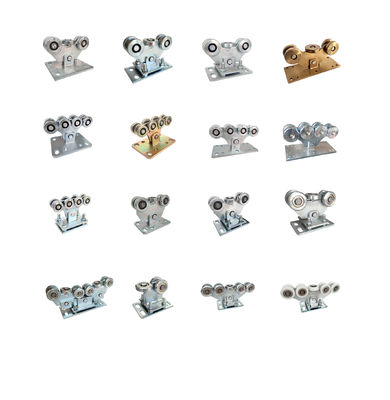

As a manufacturer, we produce all accessories this kind sliding cantilever gate. The hardware combined with a range of the high quality component, such as all size sliding cantilever gate wheel (3 wheels, 5 wheels, 8 wheels, 9 wheels, 10 wheel, 16 wheels etc.), gate stopper, guide bracket with nylon roller, end cap, adjustable fixing plate with hook bolt, guide wheel, cantilever gate track, end stop and gear rack etc.
Any interesting please contact us by email, thanks.
Company Profile
Jinnaike has been specializing in production of hardware for many years,seeking for greater perfection in aspects of quality and technology.Our company has accumulated strong professional advantage through 24 years of specialized manufacturing experience.In terms of core technologies,we strive to have them when others don't and have better ones when others have them.For this purpose,modern construction of enterprise technology center is being con tinuously advanced.We own professional design team to develop hardware products.A number of advanced production equipment are introduced to have effectively improved technical support and production capacity of products.
To build core competence of"technological innovation",Jinnaike invests heavily in technological development and equipment introduction,and attracts some highly-experienced engineers and designers.We have incontrovertibly become a leader of hardware manufacturing industry depending on mature technology,professional advantage,strong production capacity,super-strong design capability,internationally compatible R&D capability and practical marketing strategy.
We produce a wide range of hardware products including sliding gate wheels,sliding gate tracks,cantilever gate wheels,cantilever gate tracks,guide wheels,end stops,end caps,hanging door rollers,hanging door roller rails,sliding and folding door carriages,nylon rollers,nylon rollers brackets,gate stoppers,gate hinges,gate latches,geat racks,post caps,gate handles,roller shutter door spring boxes and welded cnnection straps etc.
We have many kinds of gate hardware products. Such as cantilever gate hardware; sliding gate hardware; hanging door hardware; swing gate hardware; rolling gate hardware and gear racks.
Certificate:
We can supply full set products and accessories for gate, door, and fence, to save your money and time to search for suppliers everywhere.
We are a manufacturer which can provide professional OEM service for you, our professional and experienced R&D and production department can develop and custom produce the new products for you according to your technical drawing or samples.
We are a manufacturer which has our own factories, this makes sure our offer is always very competitive and reasonable.
Our company and the quality of our products are controlled by ISO9001:2008 quality management system, and we had also got through the SGS and BV certification. Our company is aimed at the high-end market of all over the world, our products can meet the international standard, they are quality, very durable and reliable, and are mainly exported to the European & American market.
our company offers a full range of experienced and good service for production, quality checking, packaging, logistics,custom declaration, international transportation, to reduce your troubles on the products and import operations. On the other hand, our company is very close to Shanghai and Ningbo port, it’s very convenient.
Contact Person: Davis Dong
