Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors

Customer Reviews
I like to cooperate with jinnaike very much, good service!

—— Sophia Cecilia

A professional factory!

—— Leha Kirilov

Very good customization service, I have received the product for 2 months, the quality is very good!

—— Wolfgang Oeller

The purchase experience is good!

—— Gee Addo

I'm Online Chat Now

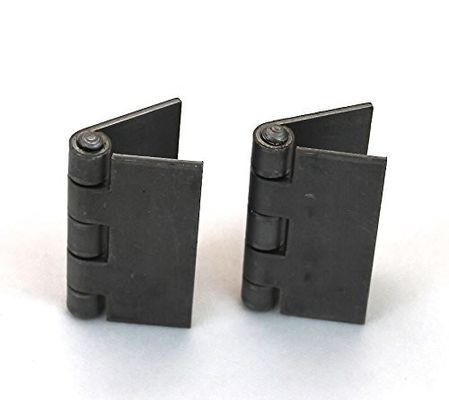

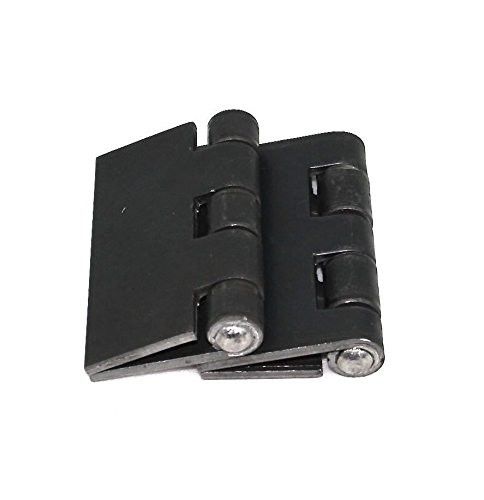

Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors

Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors
Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors

Large Image :  Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors

Product Details:
Place of Origin: China
Brand Name: JNK Hardware
Certification: SGS. TUV. BV
Model Number: JL46A/B/C/D/E/F/G/H
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: Negotiable
Packaging Details: Plastic bag + Standard export master box + wooden pallet
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500000 pieces pcs per month

Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors

Description
Keywords: Steel Butt Gate Hinge Usage: Heavy Duty Swing Gates
Surface Treatment: Unplated Finish Color: Self Color
Sample: Sample Payment Terms: 30% Deposit T/T In Advance,70% T/T Balance
Delivery Time: Quickly Size: 2*2, 3*3, 4*4, 5*5, 6*6 Inches

Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors



Quick Detail:



Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors is used for Metal Doors and Gates. Butt hinges are a smaller version of



the continuous hinge. The butt hinge usually comes in  4" length and  4" width. Hinge is available with removable pin and without holes.



This steel hinge is popularly used in security windows, storage lockers and cabinet doors.



For safety reasons, the fixing pin cannot bdisassembled



Surface mounting by welding to metal doors



Package Dimensions: 2*2, 3*3, 4*4, 5*5, 6*6  inches



Material Steel


Brand Small Parts


Style Without Holes


Finish Type Finished


Mounting Type Surface Mount



Product Description:



Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors 0



NO. D mm A B S WT(g)
JL46A 9 51 51 2 56
JL46B 13 76 76 2 152
JL46C 15 76 76 3 213
JL46D 13 101.5 101.5 2 253
JL46E 19 101.5 101.5 4.5 495
JL46F 22.5 127 127 4 815
JL46G 27 152 152 5 1371
JL46H 29 100 100 6 839


Applications:


For the assembly of doors, and sliding gates



Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors 1





Packing & Loading:



Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors 2



Company Profile:



Jiaxing Jinnaike Hardware Products Co. Ltd. is a leading worldwide manufacturer in Jiaxing based since 1995, Our company is a professional



and successful manufacturer of gate hardware which are used for sliding gate, swing gate and cantilever gate. By endless hard-working and



innovation in the past years, our company has become the leading producer of this industry in China.



We are backed by powerful technology and production, 20000 M2 space plant, (high-speed) stamping machines (1pc /400T, 3pcs/80T, 7pcs/40T,



8pcs/25T, 2pcs/16T), track making machines, wire cutting machines, milling machines, tooling making team, technical team, well-trained



production staffs, aggressive management and sales team who has shown dedicated performance standards and made us experienced supplier



to the international frontiers.



Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors 3



Equipment

To maximize market opportunity and meet the customers' demands, we continually expand the products with more specifications and varieties. So



we could cooperate not only on the exiting products with customer's private labels/logos/brands, but also the specifications customer made, or



even new items that can be produced by the current machine equipment or toolings.


The low-cost reliable sourcing, directly from the Chinese factory, has become an integrated part of life to beat the competition around you.


Standing by "Growths through customers’ growths", we are keeping commitments to be the most reliable partner you could trust in China.



Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors 4

Products

Now we have hundred kinds of products, such as sliding gate wheel, gate track, gate stopper, gate hinge, adjustable hinge, cantilever gate wheel,



guide wheel, nylon roller, roller bracket, post cap, gear rack, Steel Bracket with Roller, etc. And our products sell well all over the world because of



its high quality and competitive price.



Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors 5

Certificates

To pursue market opportunity actively and meet customer demands to a great extent, our company keeps improving the products with more



specifications and varieties. Marketing coverage is steadily expanding.


Enjoying a good reputation from all the customers worldwide, we are a reliable partner you can trust in China.



Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors 6

Staff Life

There are 150 employees with our company presently. The company attaches importance to the protection of employees' legitimate interests and

rights, and provide good salary and growth space for employees. Therefore, employees also feel the care and warmth from the company.

Unplated Finish Steel Butt Gate Hinge Without Hole For Metal Doors 7

Why Choose Us

o Complete Products

We can supply full set products and accessories for gate, door, and fence, to save your money and time to search for suppliers everywhere.



o OEM Service



We are a manufacturer which can provide professional OEM service for you, our professional and experienced R&D and production department



can develop and custom produce the new products for you according to your technical drawing or samples.



o Cost



We are a manufacturer which has our own factories, this makes sure our offer is always very competitive and reasonable.



o Quality



Our company and the quality of our products are controlled by ISO9001:2008 quality management system, and we had also got through the SGS



and BV certification. Our company is aimed at the high-end market of all over the world, our products can meet the international standard, they



are quality, very durable and reliable, and are mainly exported to the European & American market.

o Production Capacity

We can produce 15-20 standard container’s products per month, to make sure we can meet the different procurement requirements from our



customers.

o Service

our company offers a full range of experienced and good service for production, quality checking, packaging, logistics,custom declaration,



international transportation, to reduce your troubles on the products and import operations. On the other hand, our company is very close to



Shanghai and Ningbo port, it’s very convenient.
