Product Details:
|
| Keywords: | Butt Hinge Gate Hinge | Usage: | Heavy Duty Sliding Gates |
|---|---|---|---|
| Surface Treatment: | Galvainzed | Color: | Silver Or Yellow |
| Sample: | Available | Payment Terms: | 30% Deposit T/T In Advance,70% T/T Balance |
| Delivery Time: | Quickly | Quality: | Well And High Quality Control |

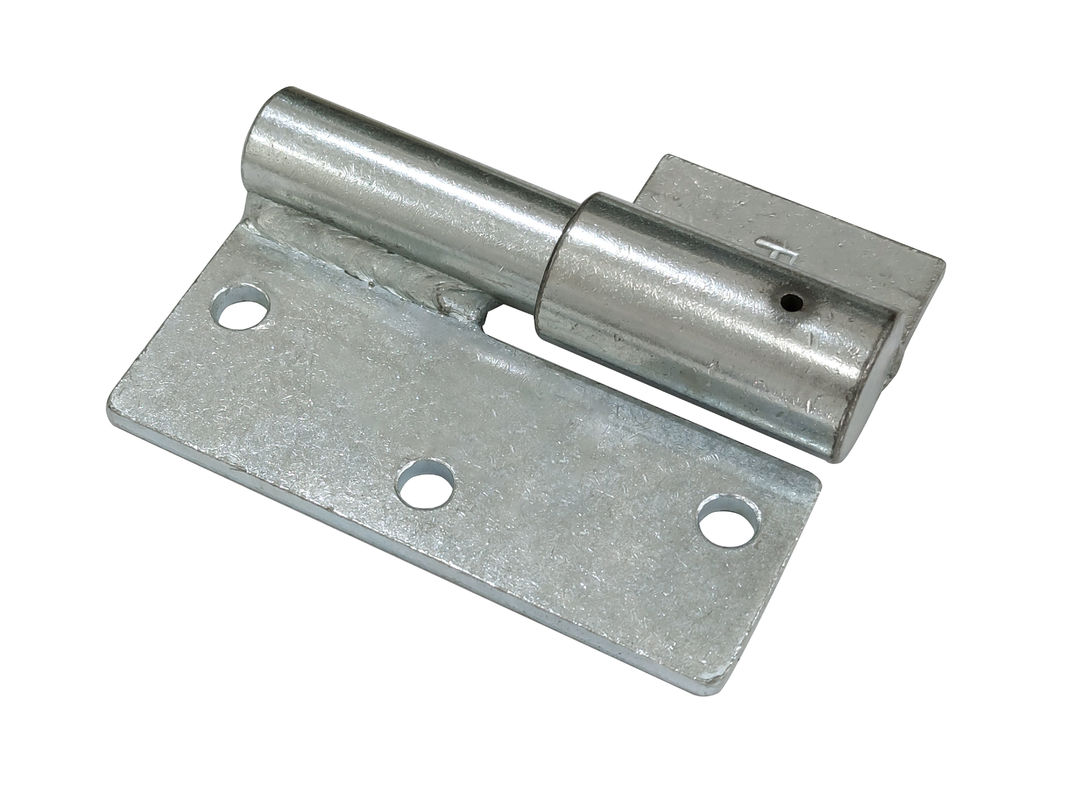

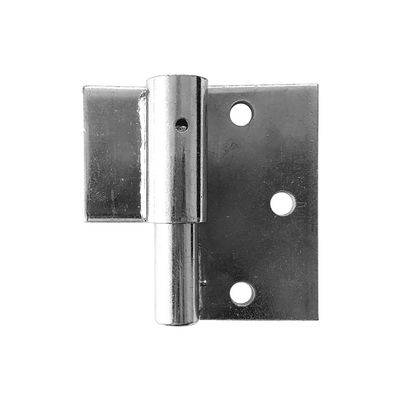

Weld on screw Hinge Butt Ball Weldable Left and Right Gate Hinge
Quick Detail:
Weld on screw Hinge Butt Ball Weldable Left and Right Gate Hinge designed for heavier duty gate applications where placement of
gate can be accommodated on site.
Welded ball bearing steel door hinges for heavy duty applications.
The coating of heavily galvanized steel improves corrosion resistance.
The hinge is used on the right hand side of the door (when pulled towards itself), however, the item can also be used on the left hand side.
The hinge has a lubrication hole, which should be noted to give the product maximum service life.
Weldable Hinge Comes Pair (Left and Right)
Removable Pin
Zinc Plated
Plate Thickness 4mm, 5mm
Sizes : hot sales 85x86mm (WxH)
Product Description:
| NO. | L | H | C | A | B | D | S | WT(g) |
| JL51AR | 85 | 86 | 40 | 50 | 22 | 22 | 4 | 490 |
| JL51BR | 90 | 99 | 44 | 50 | 22 | 25 | 5 | 353.5 |
| JL51CR | 145 | 150 | 65 | 74 | 51 | 32 | 5 | 1272 |
| JL51DR | 430 | 150 | 65 | 74 | 338 | 32 | 5 | 2092 |
| JL51ER | 125 | 150 | 65 | 75 | 30 | 32 | 5 | 1172 |
| NO. | L | H | C | A | B | D | S | WT(g) |
| JL51AL | 85 | 86 | 40 | 50 | 22 | 22 | 4 | 490 |
| JL51BL | 90 | 99 | 44 | 50 | 22 | 25 | 5 | 353.5 |
| JL51CL | 145 | 150 | 65 | 74 | 51 | 32 | 5 | 1272 |
| JL51DL | 430 | 150 | 65 | 74 | 338 | 32 | 5 | 2092 |
| JL51EL | 125 | 150 | 65 | 75 | 30 | 32 | 5 | 1172 |
Applications:
For the assembly of doors, and sliding gates
Packing & Loading:
Company Profile:
Jiaxing Jinnaike Hardware Products Co. Ltd. is a leading worldwide manufacturer in Jiaxing based since 1995, Our company is a professional
and successful manufacturer of gate hardware which are used for sliding gate, swing gate and cantilever gate. By endless hard-working and
innovation in the past years, our company has become the leading producer of this industry in China.
We are backed by powerful technology and production, 20000 M2 space plant, (high-speed) stamping machines (1pc /400T, 3pcs/80T, 7pcs/40T,
8pcs/25T, 2pcs/16T), track making machines, wire cutting machines, milling machines, tooling making team, technical team, well-trained
production staffs, aggressive management and sales team who has shown dedicated performance standards and made us experienced supplier
to the international frontiers.
To maximize market opportunity and meet the customers' demands, we continually expand the products with more specifications and varieties. So
we could cooperate not only on the exiting products with customer's private labels/logos/brands, but also the specifications customer made, or
even new items that can be produced by the current machine equipment or toolings.
The low-cost reliable sourcing, directly from the Chinese factory, has become an integrated part of life to beat the competition around you.
Standing by "Growths through customers’ growths", we are keeping commitments to be the most reliable partner you could trust in China.
Now we have hundred kinds of products, such as sliding gate wheel, gate track, gate stopper, gate hinge, adjustable hinge, cantilever gate wheel,
guide wheel, nylon roller, roller bracket, post cap, gear rack, Steel Bracket with Roller, etc. And our products sell well all over the world because of
its high quality and competitive price.
To pursue market opportunity actively and meet customer demands to a great extent, our company keeps improving the products with more
specifications and varieties. Marketing coverage is steadily expanding.
Enjoying a good reputation from all the customers worldwide, we are a reliable partner you can trust in China.
We can supply full set products and accessories for gate, door, and fence, to save your money and time to search for suppliers everywhere.
o OEM Service
We are a manufacturer which can provide professional OEM service for you, our professional and experienced R&D and production department
can develop and custom produce the new products for you according to your technical drawing or samples.
o Cost
We are a manufacturer which has our own factories, this makes sure our offer is always very competitive and reasonable.
o Quality
Our company and the quality of our products are controlled by ISO9001:2008 quality management system, and we had also got through the SGS
and BV certification. Our company is aimed at the high-end market of all over the world, our products can meet the international standard, they
are quality, very durable and reliable, and are mainly exported to the European & American market.
We can produce 15-20 standard container’s products per month, to make sure we can meet the different procurement requirements from our
customers.
our company offers a full range of experienced and good service for production, quality checking, packaging, logistics,custom declaration,
international transportation, to reduce your troubles on the products and import operations. On the other hand, our company is very close to
Shanghai and Ningbo port, it’s very convenient.
Contact Person: Honey Yu
