Product Details:
|
| Kwyword: | Nylon Gear Rack | Color: | Black Color |
|---|---|---|---|
| Application: | Electronic | Moudule: | M4 |
| Material: | Nylon Plastic | Usage: | Automatic Sliding Gate |
| Packing: | Carton | ||
| High Light: | Polyamide Electric Gate Gear Rack M4,Nylon Electric Gate Gear Rack M4,electric sliding gate rack |
||

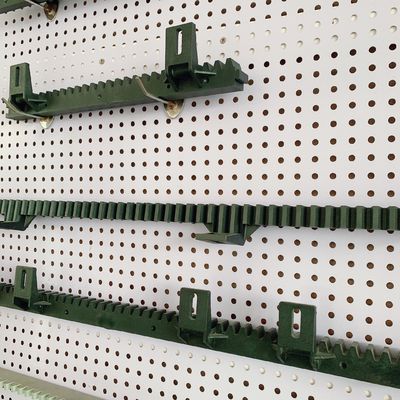

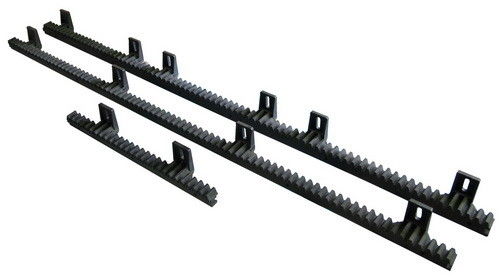

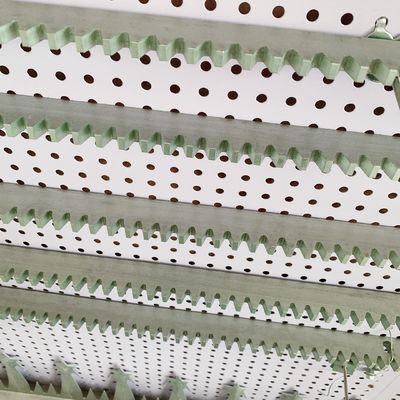

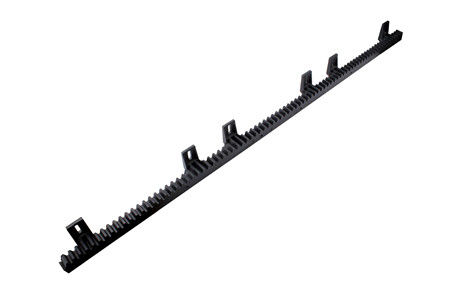

Automatic sliding gates toothed black Plastic nylon Polyamide gear rack M4
Product Description:
Automatic sliding gates require toothed gear rack to engage with the automatic gate motor cog or pinion. Gear rack is extremely strong and hard wearing. Consideration to the mounting position is important as the gear rack will be attached to the bottom frame of the gate.The most common type of gear rack used is nylon coated steel gear rack which comes in 1m and 33cm lengths. The mounting tabs can be downward or upward facing and the teeth can also be downward or upward facing. Steel gear rack comes in 2m length and is generally only used on commercial applications. There is no mounting tabs on steel gear rack and it must be welded to the gate.Nylon gear rack required for automatic sliding gate's to connect between the gate and the motor. It is usually screwed on with a 12 gauge metal screw (not supplied - 4 per meter) and is supplied in one meter lengths. (eg. 3.5 meter gate will need 4 x 1m nylon rack)For gates up to 500kg on flat ground.
Keep in mind you will require an extra half meter than your opening width.
|
NO.
|
Module
|
Lugs
|
Hmm
|
WT(G)
|
|
CT03A(LIGHT)
|
M4
|
2 lugs
|
26
|
299
|
|
CT03A-Z(HEAVY)
|
M4
|
2 lugs
|
28
|
500
|
|
CT03B
|
M4
|
2 lugs
|
26
|
856
|
|
CT03C
|
M4
|
2 lugs
|
27
|
1338
|
Application:
