Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates

Customer Reviews
I like to cooperate with jinnaike very much, good service!

—— Sophia Cecilia

A professional factory!

—— Leha Kirilov

Very good customization service, I have received the product for 2 months, the quality is very good!

—— Wolfgang Oeller

The purchase experience is good!

—— Gee Addo

I'm Online Chat Now

Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates

Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates
Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates

Large Image :  Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates

Product Details:
Place of Origin: China
Brand Name: JNK Hardware
Certification: SGS. TUV. BV
Model Number: JL87A/B/C/D/F
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: Negotiable
Packaging Details: Plastic bag + Standard export master box + wooden pallet
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500000 pieces pcs per month

Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates

Description
Keywords: Gate Pivot Hinge Lower Base With Bearing Usage: Swing Gates
Color: White Surface: Zinc Plating
Material: Metal Q235 Sample: Offered
Payment Terms: 30% Deposit T/T In Advance,70% T/T Balance Delivery Time: Quickly
High Light:

Metal Q235 Gate Pivot Hinge

,

Rotating Plate Gate Hinge

,

Zinc Plating Gate Pivot Hinge

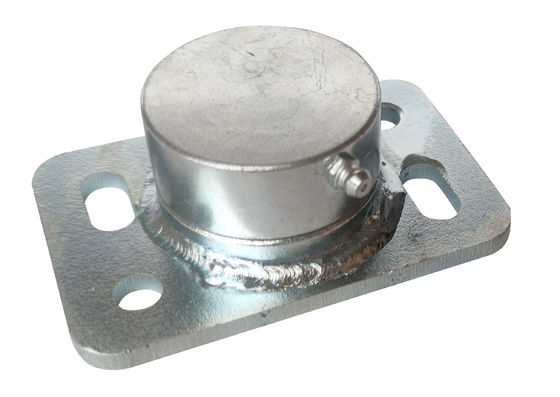

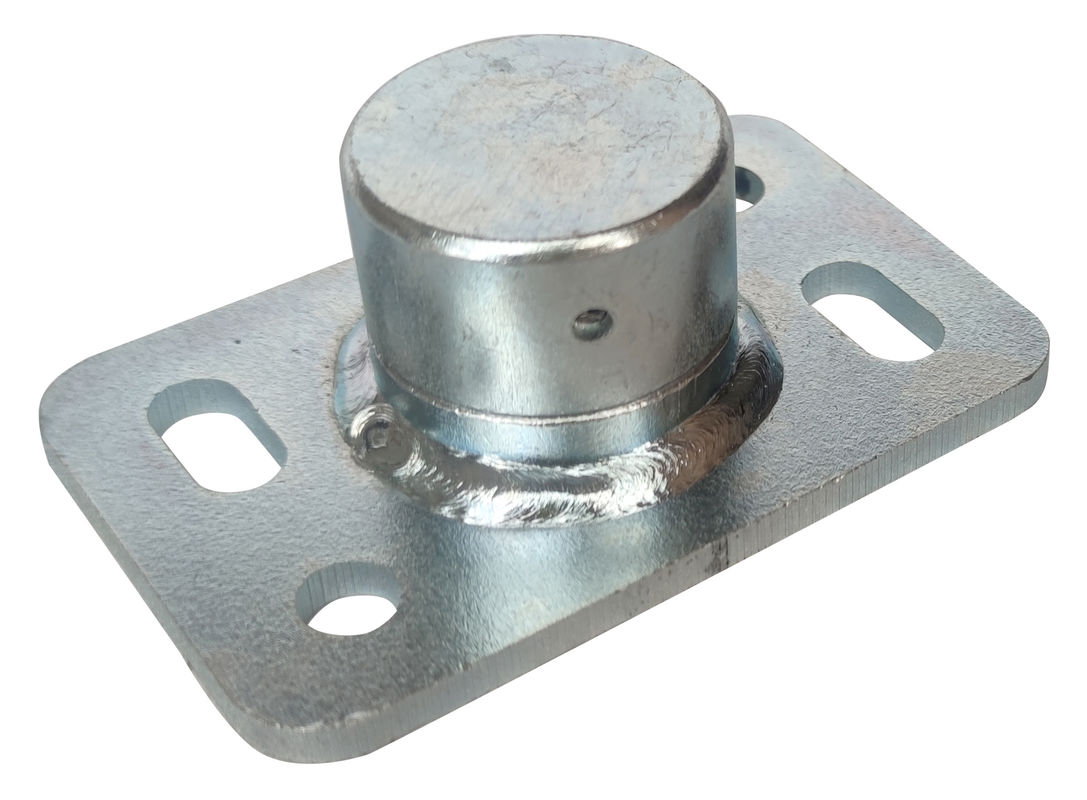

Rotating Plate Gate Hinge Lower Base With Bearing For Light And Heavy Gates



Quick Detail:



Lower base for light and heavy duty doors with bearings


This element is used to manufacture swing doors, gates or gates with one or two leaves.


The material is carbon steel C45. The pivot hinge with bearing. The surface of this product is plated with yellow zinc or white



zinc according to customer



requirements to provide greater resistance to external elements. A metal plate is welded at the bottom of the hinge, and there are



holes in the metal plate. The installation and fixing are very simple and convenient. It can be fixed with bolts or welded.


This product provides 3 kinds of diameters 40MM-50MM - 70MM -120MM.



The 70mm pivot hinge with bearing is hardware suitable for swing doors.


This pivot hinge has an O-ring for better water resistance. The hardware can be used in sets or individually.



The best choice hinge for electric swing doors. Allows very narrow gate gaps.



Material: Q235 STEEL



Diameter: 40mm, 50mm, 60mm, 120mm



Product Description:



Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates 0



NO. D mm H A B S d WT(g)
JL87A 40 32 100 65 5 10 513.8
JL87B 50 31 100 65 5 10 652.4
JL87C 60 36 135 75 5 10 1010.8
JL87D 70 36 135 75 5 10 1354.4




Applications:



For the assembly of electric swing doors, and sliding gates



Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates 1





Packing & Loading:



Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates 2



Company Profile:



Jiaxing Jinnaike Hardware Products Co. Ltd. is a leading worldwide manufacturer in Jiaxing based since 1995, Our company is a professional



and successful manufacturer of gate hardware which are used for sliding gate, swing gate and cantilever gate. By endless hard-working and



innovation in the past years, our company has become the leading producer of this industry in China.



We are backed by powerful technology and production, 20000 M2 space plant, (high-speed) stamping machines (1pc /400T, 3pcs/80T, 7pcs/40T,



8pcs/25T, 2pcs/16T), track making machines, wire cutting machines, milling machines, tooling making team, technical team, well-trained



production staffs, aggressive management and sales team who has shown dedicated performance standards and made us experienced supplier



to the international frontiers.



Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates 3



Equipment

To maximize market opportunity and meet the customers' demands, we continually expand the products with more specifications and varieties. So



we could cooperate not only on the exiting products with customer's private labels/logos/brands, but also the specifications customer made, or



even new items that can be produced by the current machine equipment or toolings.


The low-cost reliable sourcing, directly from the Chinese factory, has become an integrated part of life to beat the competition around you.


Standing by "Growths through customers’ growths", we are keeping commitments to be the most reliable partner you could trust in China.



Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates 4

Products

Now we have hundred kinds of products, such as sliding gate wheel, gate track, gate stopper, gate hinge, adjustable hinge, cantilever gate wheel,



guide wheel, nylon roller, roller bracket, post cap, gear rack, Steel Bracket with Roller, barn door accessories, etc. And our products sell well all over the world because of



its high quality and competitive price.



Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates 5

Certificates

To pursue market opportunity actively and meet customer demands to a great extent, our company keeps improving the products with more



specifications and varieties. Marketing coverage is steadily expanding.


Enjoying a good reputation from all the customers worldwide, we are a reliable partner you can trust in China.



Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates 6

Staff Life

There are 150 employees with our company presently. The company attaches importance to the protection of employees' legitimate interests and

rights, and provide good salary and growth space for employees. Therefore, employees also feel the care and warmth from the company.

Rotating Plate Gate Pivot Hinge Metal Q235 For Light And Heavy Gates 7

Why Choose Us

o Complete Products

We can supply full set products and accessories for gate, door, and fence, to save your money and time to search for suppliers everywhere.



o OEM Service



We are a manufacturer which can provide professional OEM service for you, our professional and experienced R&D and production department



can develop and custom produce the new products for you according to your technical drawing or samples.



o Cost



We are a manufacturer which has our own factories, this makes sure our offer is always very competitive and reasonable.



o Quality



Our company and the quality of our products are controlled by ISO9001:2008 quality management system, and we had also got through the SGS



and BV certification. Our company is aimed at the high-end market of all over the world, our products can meet the international standard, they



are quality, very durable and reliable, and are mainly exported to the European & American market.

o Production Capacity

We can produce 15-20 standard container’s products per month, to make sure we can meet the different procurement requirements from our



customers.

o Service

our company offers a full range of experienced and good service for production, quality checking, packaging, logistics,custom declaration,



international transportation, to reduce your troubles on the products and import operations. On the other hand, our company is very close to



Shanghai and Ningbo port, it’s very convenient.
