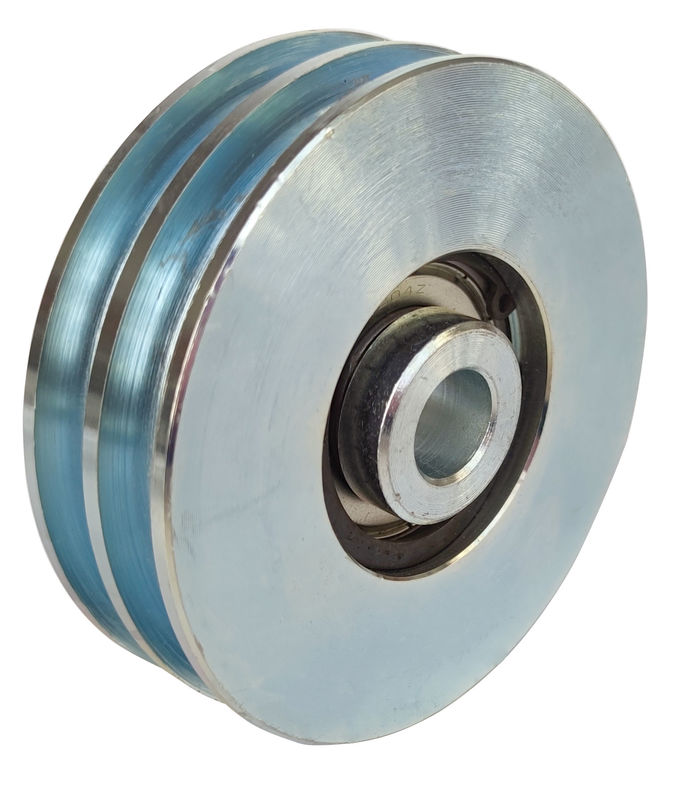

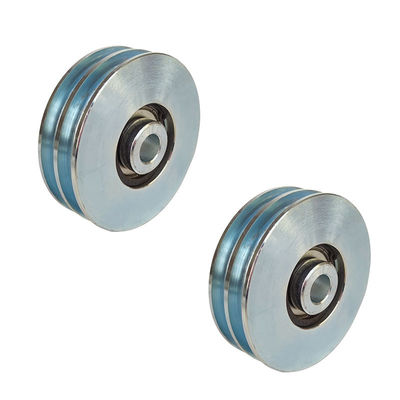

Steel Sliding Door Roller Double Groove With Single Bearing 6204

Steel Sliding Door Roller Double Groove With Single Bearing 6204
Steel Sliding Door Roller Double Groove With Single Bearing 6204 Steel Sliding Door Roller Double Groove With Single Bearing 6204

Large Image :  Steel Sliding Door Roller Double Groove With Single Bearing 6204

Product Details:
Place of Origin: China
Brand Name: JNK Hardware
Certification: SGS. TUV. BV
Model Number: HL80X2U
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: Negotiable
Packaging Details: Plastic bag + Standard export master box + wooden pallet
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500000 pieces pcs per month

Steel Sliding Door Roller Double Groove With Single Bearing 6204

Description
Keywords: Sliding Door Roller Application: For Sliding Doors
Meterial: High Quality Steel Metal Q235 Surface Treatment: Galvanized
Bearing: 6204 Bearing Color: Silver, Yellow
Payment Terms: 30% Deposit T/T In Advance,70% T/T Balance Quality: High Quaity
High Light:

Q235 Steel Sliding Door Roller

,

Double Groove Sliding Gate Wheel

,

Bearing 6204 Sliding Gate Wheel

Steel Sliding Door Roller Double Groove Wheel With Single Bearing 6204 For Sliding Doors



Quick Detail:



Pulleys or sliding wheels are used in the manufacture of metal doors, the purpose of which is to move the door on sliding



rails that we install. The wheels are double slot, yes the metal door is more stable when running.


The material used to manufacture these wheels is carbon steel C45 with galvanized surface, which can be plated with yellow



zinc or white zinc according to the customer's requirements, and can also produce wheels in stainless steel 304.


These pulleys are manufactured with 2 bearings and have different sizes or dimensions depending on the weight of the door to



be manufactured.



Single-bearing wheels with different sizes and grooves:



10 U-shaped double grooves



Dia: 78/98/118/148/178/198mm



Material: High Quality Q235 steel.


Suitable for sliding applications where high loading capacity is required.



Product Description:



Steel Sliding Door Roller Double Groove With Single Bearing 6204 0



NO. D mm A C d H M Z WT(g)
HL80X2U 78 29 32 10 9 M16 6204 713
HL100X2U 98 29 32 10 9 M16 6204 1266
HL120X2U 118 29 32 10 9 M16 6204 1935
HL150X2U 148 29 32 10 9 M16 6204 3249
HL180X2U 178 29 32 10 9 M16 6204 4901
HL200X2U 198 29 32 10 9 M16 6204 6148





Applications:




For Manual or Automatic Gates Suitable for Sliding / Swing / Folding Gates



Steel Sliding Door Roller Double Groove With Single Bearing 6204 1
