Automatic Sliding Gate Hardware Sliding Gate Wheel Kit 4'' V Groove

Automatic Sliding Gate Hardware Sliding Gate Wheel Kit 4'' V Groove
Automatic Sliding Gate Hardware Sliding Gate Wheel Kit 4'' V Groove Automatic Sliding Gate Hardware Sliding Gate Wheel Kit 4'' V Groove

Large Image :  Automatic Sliding Gate Hardware Sliding Gate Wheel Kit 4'' V Groove

Product Details:
Place of Origin: China
Brand Name: JNK Hardware
Certification: SGS. TUV. BV
Model Number: HD1V set
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: Negotiable
Packaging Details: Plastic bag + Standard export master box + wooden pallet
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500000 pieces pcs per month

Automatic Sliding Gate Hardware Sliding Gate Wheel Kit 4'' V Groove

Description
Keywords: Sliding Driveway Gate Wheel Usage: Sliding Driveway Gate
Color: Silver Or Yellow Zinc Surface-Plating Meterial: Steel Iron
Sample: Available Payment Terms: 30% Deposit T/T In Advance,70% T/T Balance
Delivery Time: Prompt Package: Carton+Pallet
High Light:

V Groove Sliding Gate Wheel Kit

,

Automatic Sliding Gate Wheel Kit

4'' V Groove Automatic Sliding Gate Hardware Sliding Driveway Gate Wheel Kit



Quick Detail:



Sliding door wheel with inner bracket, it has Y, U, V groove, we have size from 50mm to 140mm, the bearing can be single bearing or



double bearing.



The surface can be plated with white zinc or yellow zinc, sliding Door 78mm Recessed Door Track Wheels for V-Slot Profile Track.



It works for the V track.

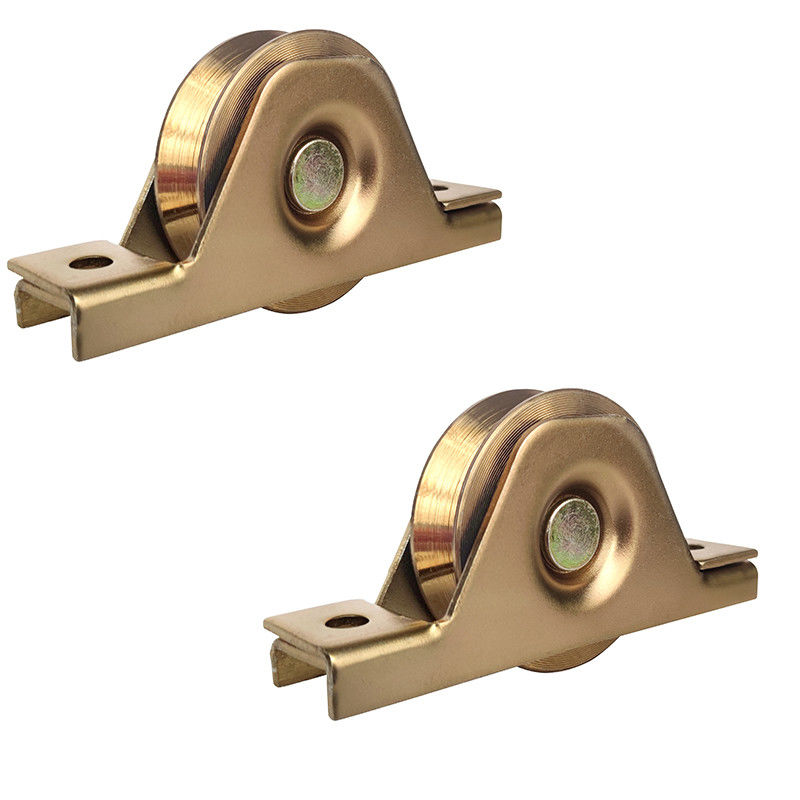

V-groove profile track with galvanized wheel design. Complete housing, 80mm diameter, 1 sealed bearing. The rollers used on both



automatic sliding doors (electric sliding doors) and manual sliding doors are precision machined to ensure a smooth and consistent



rolling action on the door rails. The surface of the track wheels is galvanized to prevent rust.


The single bearing design of our portal track wheels ensures long life and is cost effective. The frame of these recessed door track



wheels is designed to be recessed into the bottom of the door. Suitable for track wheel designs that are bolted to the bottom of the door.



Material: steel, Q235, surface treatment can be yellow zinc plated or silver zinc plated.

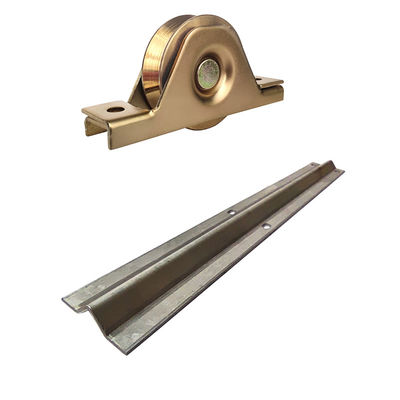

Including:



2 x  Gate Track Wheels



6 x 1m Steel Sliding Gate Tracks



1 x Double Roller Gate Guide Bracket



1 x gate stopper



1 x gate end catcher



Product Description:



Automatic Sliding Gate Hardware Sliding Gate Wheel Kit 4'' V Groove 0

NO. D mm A C H L WT(g)
HD1V50 50 15 25 8.5 95 247
HD1V60 58 17 26 10 110 353
HD1V70 68 20 32 7 136 615
HD1V80 78 20 32 12 136 780
HD1V90 88 20 34 8 152 1033
HD1V100 98 22 34 13 152 1294
HD1V120 118 25 36 12 200 2181
HD1V140 138 25 36 18 200 3050




Applications:



Gate doors/Factory doors/Entrance doors/Warehouse sliding doors
