Product Details:
|
| Keywords: | Adjustable Slide Cantilever Gate Trolleys | Usage: | Cantilever Gates |
|---|---|---|---|
| Surface Finishing: | Silver + Yellow Zinc Plated | Meterial: | Iron Metal |
| Color: | Silver, Yellow | Payment Terms: | 30% Deposit T/T In Advance,70% T/T Balance |
| Delivery Time: | Prompt | Package: | Carton |
| High Light: | Rolling Cantilever Gate Wheel,Adjustable Bottom Cantilever Gate Wheel,Adjustable Bottom Cantilever Sliding Gate Wheels |
||

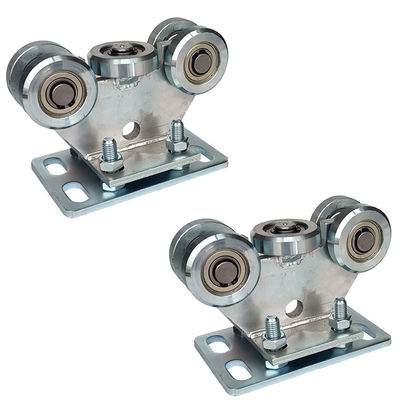

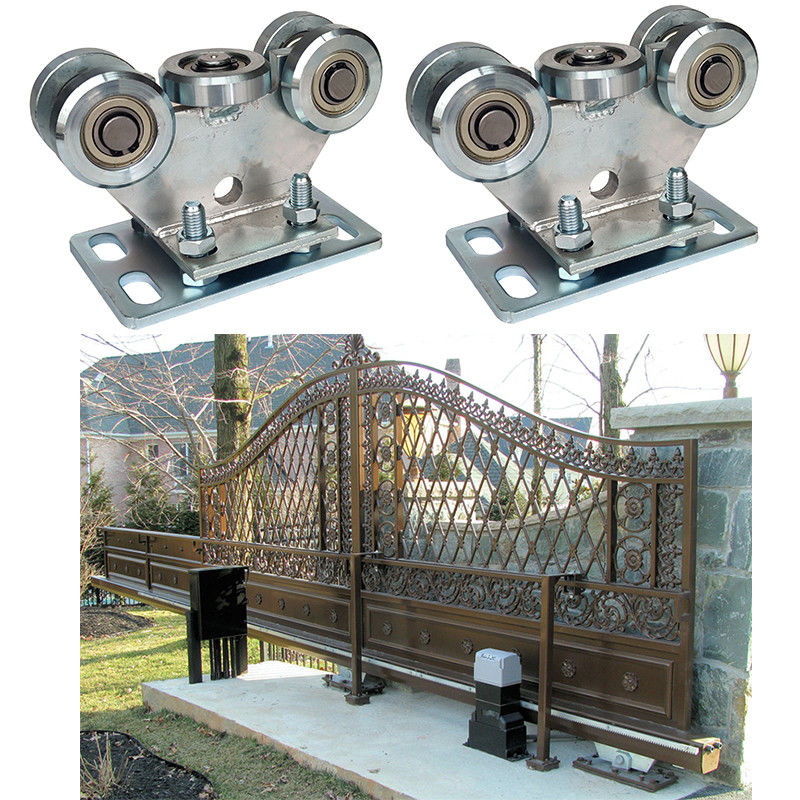

Adjustable Bottom Track Slide Gate Trolleys 5 Wheel For Sliding Cantilever Gate
Bottom Track Slide Gate Trolleys 5 Wheels For Slide Cantilever Gate System
Quick Detail:
Rolling cantilever door system medium-sized automatic sliding door wheel 5 trolley self-supporting door.
Elements for the manufacture of self-supporting doors or doors without tracks in the floor. XL70x70SJ. 03 is made of Q235
carbon steel with a galvanized finish for better resistance to corrosion from external elements.
XL70x70SJ. 03 is suitable for doors with a free clearance of 3 - 6 meters and a maximum weight of 600-700 kg.
Space efficient use of sliding doors or trackless cantilever systems, suitable for short driveways, as the sliding doors slide along
the fence line;
The opening and closing of the automatic sliding door does not require any physical force, and it can be opened and exited
within a distance of 20-30 meters from the door; the sliding door is installed on wheels, and the bottom of the door will not be
damaged due to collision with the ground; than the spring Safer Doors - Design and install safety devices such as safety
beams, safety edges, loop detectors to prevent the vehicle's doors from closing; easy to automate as no part of the door
touches the ground (maintenance-free sliding gears); automatic Sliding doors are suitable for anti-counterfeiting of residential
properties and commercial properties;
Color: White Or Yellow.
Size: dia=60mm.
Finish: Zinc Plated.
Materials: High quality galvanized steel, Q235
Product Description:
| NO. | D mm | C | C1 | S | A*B | H | WT(kg) |
| XL70x70SJ.03 | 60 | 57 | 18 | 8 | 180*120 | 150-172 | 6.0 |
Applications:
security residential properties and commercial properties
Packing & Loading:
