Product Details:
|
| Product: | Steel V Groove Sliding Gate Wheel | Key Words: | Steel V Groove Sliding Gate Wheel |
|---|---|---|---|
| Material: | Q235 Metal | Surface: | Galvanized White |
| Size: | From 38mm ----- 200mm | Bearing: | Single Bearing Or Double Bearings |
| MOQ: | 120pcs | Logo: | Ok |
| High Light: | V Groove Sliding Gate Wheel,Sliding Gate Wheel Q235 Metal,V Groove Sliding Gate Wheel |
||
--Steel V Groove Sliding Gate Wheel

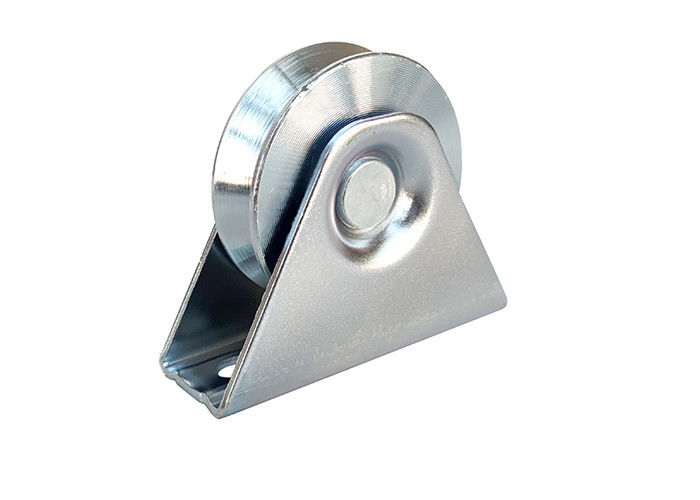

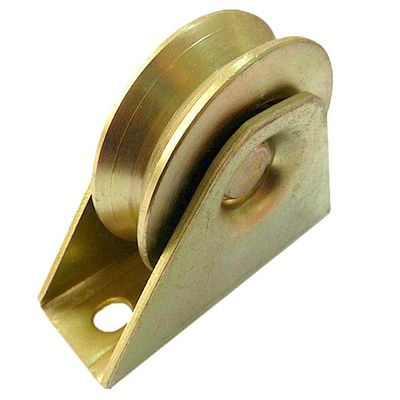

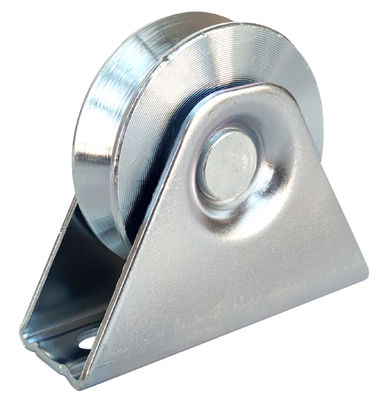

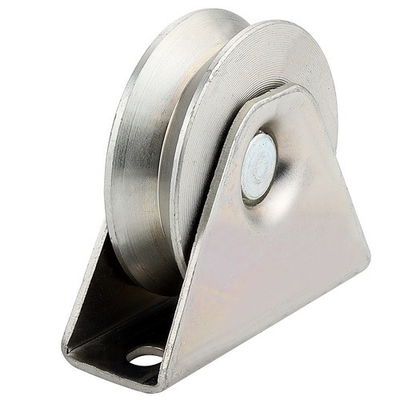

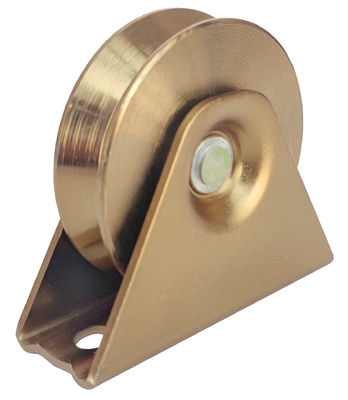

Steel V Groove Sliding Gate Wheel
Steel V Groove Sliding Gate Wheel with Y, U, V grooves,
Steel V Groove Sliding Gate Wheel with size from 38mm to 200mm,
| NO. | D | A | C | H | L | WT(g) |
| HT1V30 | 30 | 10 | 16 | 35 | 45 | 63 |
| HT1V40 | 38 | 12 | 20 | 44 | 58 | 131 |
| HT1V50 | 50 | 15 | 25 | 57 | 75 | 265 |
| HT1V60 | 58 | 17 | 28 | 64 | 85 | 390 |
| HT1V70 | 68 | 20 | 35 | 80 | 100 | 627 |
| HT1V80 | 78 | 20 | 35 | 85 | 100 | 792 |
| HT1V90 | 88 | 20 | 36 | 100 | 132 | 1111 |
| HT1V100 | 98 | 22 | 36 | 105 | 132 | 1372 |
| HT1V120 | 118 | 25 | 37 | 127 | 158 | 2328 |
JINNAIKE supply Steel V Groove Sliding Gate Wheel
--JINNAIKE other popular gate parts
--Our honor
--Packaging & Delivery
| Packing | All hanging are packaged by standard export package.solid and durable master carton |
| Delivery time | 5-25 day after order confirmed. |
| Payment term | T/T 30% deposit before production,TT 70% balance payment before shipment. |
| Delivery terms | FOB shanghai, CIF. |
--Our service
| Quality | ensure 100% product exported in high quality |
| Delivery | Delivery on time |
| service | Good after-sales service |
Jiaxing Jinnaike Hardware Products Co,.Ltd is a company engaged in hardware products trading company. Our company was established in 1995, has many famous enterprises at home and abroad to establish a long-term friendly business relationship. Our Company mainly engaged in sliding gate wheel series,cantilever gate carriage series,nylon roller series,gate hinge,gate latch,gate stopper and post cap. Our products are good in quality and cheap in price.To meet the customers’ demand,we could cooperate not only on the exiting products with customer’s private labels, also the specifications customer made, or even new items that can be produced by the current machine equipment or tooling. Our company has been in good faith to create enterprises, has won a good reputation, also won the respect of their domestic counterparts.
Our company has been certified by ISO9001:2008 and BV(BUREAU VERITAS)
Hope you will be interested in our Steel V Groove Sliding Gate Wheel, welcome to contact me, thanks!
