Product Details:
|
Keywords: | Hanging Door Roller Rail | Color: | Silver |
---|---|---|---|
Usage: | Hanging Gates System | Payment Terms: | 30% Deposit T/T In Advance,70% T/T Balance |
Sample: | Availabe | Delivery Time: | Quickly |
Package: | Bubble Bag, Steel Strap | Surface Finishing: | Silver Zinc Plated |
High Light: | Galvanized Iron Hanging Door Track,Q235 Hanging Door Track,Hanging Door Tracks Galvanized Iron |

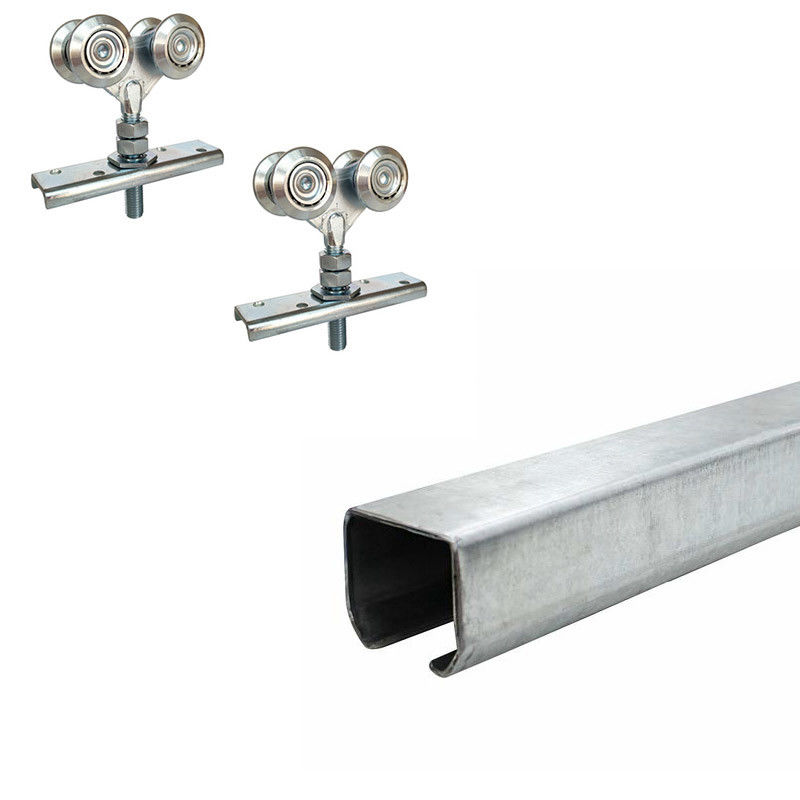

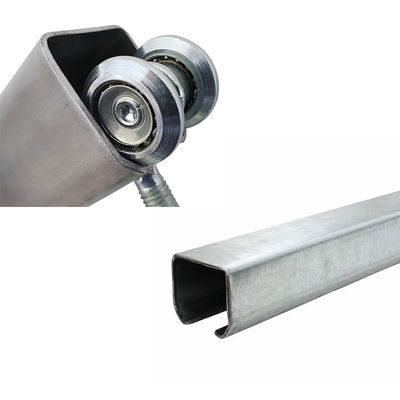

Galvanized Iron Hanging Door Track For Hanging Roller Track System
Quick Detail:
Galvanized Suspension Roller Track System Suspended Door Roller Tracks can be used to mount Suspended Door 2 Wheel Roller Sets,
Suspended Door 4 Wheel Roller Sets and Suspended Door Access Brackets (roof and wall brackets).
The available lengths of the Hanging channels are 2.9m and 5.8m respectively, and the channel width is 29mm.
When the maximum weight of the door is 300kg, there is a 5.8m channel supported by at least 5 channel supports (each channel). The distance
between brackets should not exceed 1160mm. For longer installations, the two sections of the track can be joined together using a hanging link
bracket.
The hanging wheel series is widely used in factory doors, garage doors, heavy commercial sliding doors, hanging doors and other application
solutions, space partitions or gates.
Material: Galvanized sheet Steel Q235
Dimension: 50 mm width X 46mm height
Thickness: 2 mm
Length: 2.9 m and 5.8 m
Color: Silver
Product Description:
No. | A | H | C | S | WT(kg/m) |
GG01B | 50 | 46 | 29 | 2 | 2.64 |
Applications:
For the assembly of doors, and sliding gates
Packing & Loading:
Company Profile:
Jiaxing Jinnaike Hardware Products Co. Ltd. is a leading worldwide manufacturer in Jiaxing based since 1995, OWe are a professional and
successful manufacturer of gate hardware for sliding doors, flat doors and cantilever doors. After several years of unremitting efforts and
innovation, our company has become the leading manufacturer in this industry in China.
Backed by strong technology and production, we have a workshop of 20000 square meters, (high-speed) punching machines (1PCS /400T,
3pcs/80T, 7pcs/40T, 8PCS /25T, 2pcs/16T), track machines, line cutting machines, milling machines, mould manufacturing team, technical team,
well-trained production personnel, Active management and sales teams, who demonstrate dedicated performance standards, make us an
experienced supplier at the international forefront.
To maximize market opportunity and meet the customers' demands, we continually expand the products with more specifications and varieties. So
we could cooperate not only on the exiting products with customer's private labels/logos/brands, but also the specifications customer made, or
even new items that can be produced by the current machine equipment or toolings.
The low-cost reliable sourcing, directly from the Chinese factory, has become an integrated part of life to beat the competition around you.
Standing by "Growths through customers’ growths", we are keeping commitments to be the most reliable partner you could trust in China.
Now we have hundred kinds of products, such as sliding gate wheel, gate track, gate stopper, gate hinge, adjustable hinge, cantilever gate wheel,
guide wheel, nylon roller, roller bracket, post cap, gear rack, Steel Bracket with Roller, etc. And our products sell well all over the world because of
its high quality and competitive price.
To pursue market opportunity actively and meet customer demands to a great extent, our company keeps improving the products with more
specifications and varieties. Marketing coverage is steadily expanding.
Enjoying a good reputation from all the customers worldwide, we are a reliable partner you can trust in China.
We can supply full set products and accessories for gate, door, and fence, to save your money and time to search for suppliers everywhere.
o OEM Service
We are a manufacturer which can provide professional OEM service for you, our professional and experienced R&D and production department
can develop and custom produce the new products for you according to your technical drawing or samples.
o Cost
We are a manufacturer which has our own factories, this makes sure our offer is always very competitive and reasonable.
o Quality
Our company and the quality of our products are controlled by ISO9001:2008 quality management system, and we had also got through the SGS
and BV certification. Our company is aimed at the high-end market of all over the world, our products can meet the international standard, they
are quality, very durable and reliable, and are mainly exported to the European & American market.
We can produce 15-20 standard container’s products per month, to make sure we can meet the different procurement requirements from our
customers.
our company offers a full range of experienced and good service for production, quality checking, packaging, logistics,custom declaration,
international transportation, to reduce your troubles on the products and import operations. On the other hand, our company is very close to
Shanghai and Ningbo port, it’s very convenient.
Contact Person: Honey Yu
