Product Details:
|
| Keywords: | Sliding Gate Roller Pulley | Usage: | Automatic Sliding Gates |
|---|---|---|---|
| Surface Finishing: | Silver Yellow Zinc Plating | Meterial: | Iron |
| Groove: | U, V, H, Y | Color: | Yellow Silver |
| Payment Terms: | 30% Deposit T/T In Advance | Delivery Time: | Prompt |
| High Light: | 3.15" Sliding Gate Wheel,80Mm Sliding Gate Roller Wheels,3.15" Sliding Gate Roller Wheels |
||

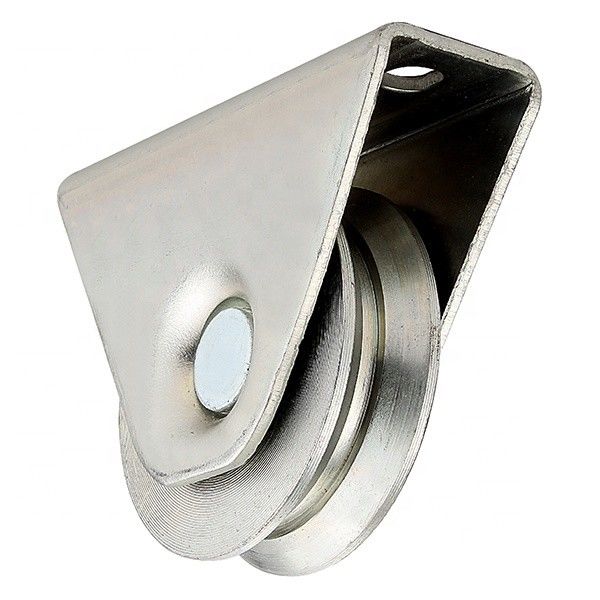

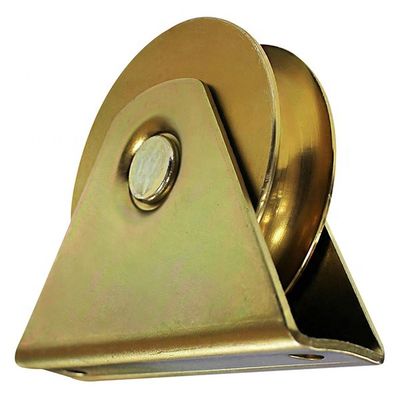

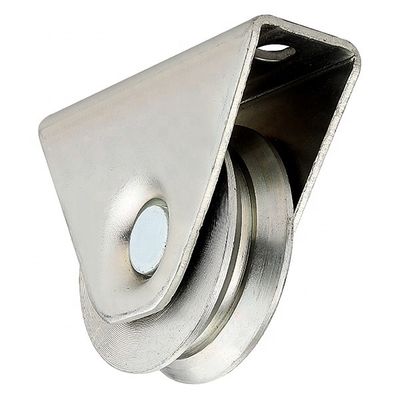

Steel 3.15" 80Mm Sliding Gate Roller Wheels Door Single Bearings
Single Bearings Sliding Gate Wheel Diameter 80 Mm With Support For Sliding Gates
Quick Detail:
Single bearing sliding door wheel 80 mm diameter sliding door with support automatic sliding door. The wheel has double bearings,
which have a higher bearing capacity than single bearings. Galvanized surface, color of white zinc, yellow zinc or color zinc,
according to customer needs to produce.
The choice of guidance system depends on whether the door is flat topped, whether it is tilted, the speed of automation, whether
The fence protrudes from the front of the frame. All guide systems should be designed to ensure that the gate will never tip
over -- even if the roller comes loose.
A semicircular grooved wheel with an external support frame for rolling along a slide. Each wheel has a separate weight class,
So buying multiple wheels can spread the load and support more weight. Bearings with inverted profile rails for flat mounting under doors.
Size: Diameter 40mm/50mm/60mm/70mm/80mm/90mm/100mm/120mm, Can be customized according to customer requirements.
Finish: Plated finish.
Material: made of high quality galvanized steel.
Color: White, Yellow
Groove: Y Groove, Used With V Gate Track.
Product Description:
| NO. | D mm | A | C | H | L | WT(g) |
| HT1Y40 | 38 | 12 | 20 | 44 | 58 | 132 |
| HT1Y50 | 50 | 15 | 25 | 57 | 75 | 257 |
| HT1Y60 | 58 | 17 | 28 | 64 | 85 | 387 |
| HT1Y70 | 68 | 20 | 35 | 80 | 100 | 616 |
| HT1Y80 | 78 | 20 | 35 | 85 | 100 | 779 |
| HT1Y90 | 98 | 20 | 36 | 100 | 132 | 1108 |
| HT1Y100 | 88 | 22 | 36 | 105 | 132 | 1371 |
| HT1Y120 | 118 | 25 | 37 | 127 | 158 | 2307 |
Applications:
For high-traffic, commercial sliding gates track applications
